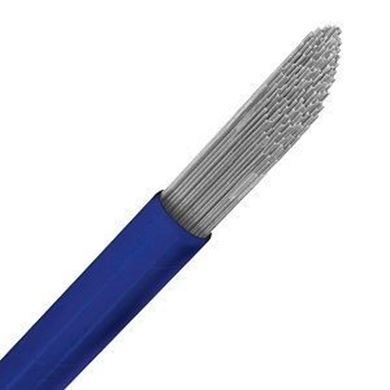

Weld Star 16 Stainless TIG Wire 2.4mm

Austenitic stainless steel wire with low carbon content minimizes the risk of intergranular carbide precipitation and enhances resistance to intergranular corrosion, eliminating the need for stabilizers like niobium or titanium.

Offers good corrosion resistance in nitric acid environments.

Good mechanical properties at sub-zero temperatures down to -197ºC.

Typically used on applications where a good atmospheric corrosion resistance in urban and rural medias is expected, pipes/tubes, boiler engineering, food processing and chemical industries etc.

Typical Base Materials

All 300 series austenitic stainless steel*

* Illustrative, not exhaustive list

Standards

EN ISO 14343-A - W 19 12 3 L

AWS A5.9 - ER 316L

Chemical Composition % (Typical)

C% 0.021     Mn% 1.80     Si% 0.43     S% 0.005     P% 0.027

Ni% 11.19     Cr% 18.70     Mo% 2.62     Cu% 0.30

Mechanical Properties

Tensile Strength          ≥510 MPa

Yield Strength          ≥320 MPa

Elongation          ≥25 %

Impact Strength          ≥80 J

Shielding Gases

EN ISO 14175 - TIG: I1 (Argon)

Welding Positions

EN ISO 6947 - PA, PB, PC, PD, PE, PF, PG

Packaging Data

Diameter          Length          Weight

0.80 mm          1000mm          5kg

1.20 mm          1000mm          5kg

1.60 mm          1000mm          5kg

2.00 mm          1000mm          5kg

2.40 mm          1000mm          5kg

3.20 mm          1000mm          5kg

Liability: Whilst all reasonable efforts have been made to ensure the accuracy of the information contained, this information is subject to change without notice and can be only considered as suitable for general guidance.
