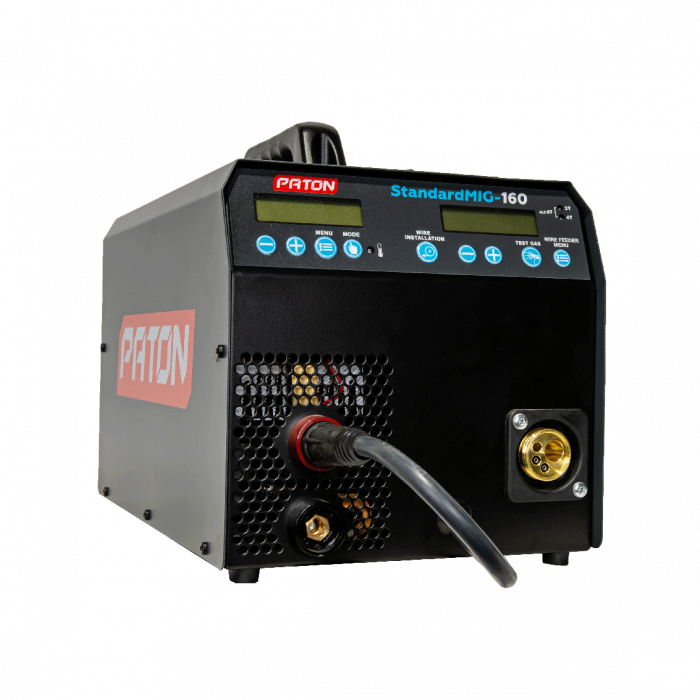

Paton StandardMIG 160 MIG Welder - 230V

The PATON StandardMIG 160 is a 230V single phase multi process welder. It is capable of MIG, DC lift TIG and MMA processes to a very high standard. It also boasts a pulse feature on TIG and MMA processes. It's 160 amp output allows for welding of up to 5MM thick mild steel whilst its very stable "low end" current allows for welding of very thin material. The Paton PSI 160 is capable of welding mild steel, stainless steel & aluminium (when the right wire feed rollers & torch liner are fitted). It boasts a reverse polarity function, therefore it is capable of welding with flux cored & gasless welding wires. Overall, it is a great solution for maintenance, DIY or light production welding.

The warranty on this machine is 5 years (managed by Welding Supplies Direct in the UK).

Key features include:

• Pulse capability on DC lift TIG and MMA processes
• 5KG maximum wire reel capacity
• Easy to use control panel
• Wire inch function
• Gas test function
• Lockable settings
• Upslope and downslope control
• Pre gas and post gas control
• Inductance control

Technical specifications

• Input supply - 230V 16A
• Maximum output current - 160A
• Duty cycle - 45% @ 160A / 100% @ 107A
• Voltage range - 12V - 24V
• Wire feed speed range - 2M - 16M per minute
• MMA electrode capability - 1.6MM - 4MM
• Wire feeder - 2 roll
• Maximum wire feed reel capacity - 5KG
• Open circuit voltage - 12V (VRD) / 75V
• Required generator KVA - 5.5KVA (w/ AVR)
• Build standards: EN60205 - 1:2006 / EN60974 - 1:2012 / EN60974 - 10:2014
• Dimensions: 420MM x 245MM x 298MM
• Weight - 11KG
• Protection class - IP21

The standardMIG 160 package includes a 3M MB15 MIG torch, gas regulator, 3M earth lead with clamp, 3M arc welding lead with Abicor Binzel electrode holder, gas hose with connections, 0.6MM - 0.8MM V groove wire feeder rollers, 1MM - 1.2MM V groove wire feed rollers. However, if you'd like a more complete package then suitable 'Ready to Weld Packages' for this machine can be found below:

• Standard 'Ready to Weld' MB15 5KG Package
• Intermediate 'Ready to Weld' MB15 5KG Package
• Expert 'Ready to Weld' MB15 5KG Package

There is also an optional transportation trolley which can be found here:

• Inverter Trolley
