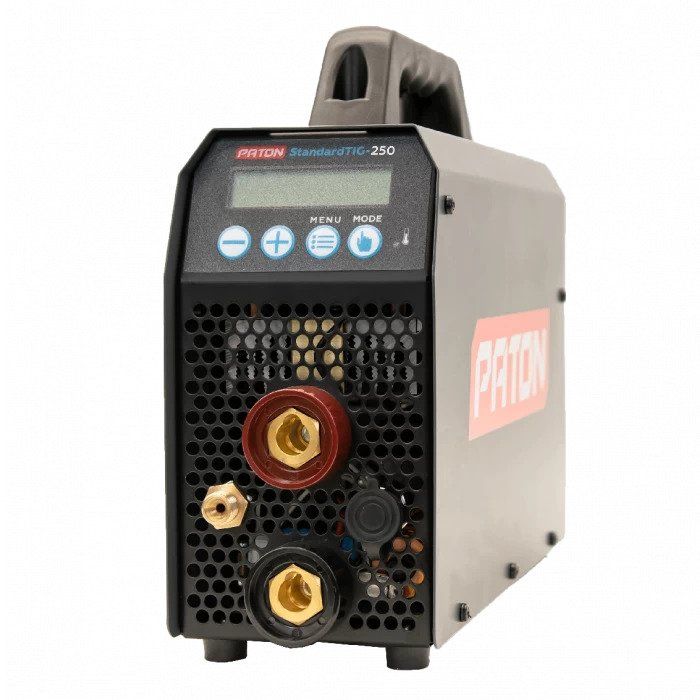

Paton StandardTIG 250 DC TIG Welder - 230V

The Paton StandardTIG 250 DC TIG welder is a high quality, European made DC TIG welder. It runs on a 230V input supply and outputs 250 amps of DC welding current. The machine is capable of welding mild steel and stainless steel up to 8MM in thickness. The machine offers many things that are desireable when choosing which welder to purchase, such as:

• Outstanding build quality
• UK supported warranty (5 years)
• Feature packed
• High quality accessories from Abicor Binzel

A comprehensive list of key features can be found here:

• MMA function with pulse for stick welding thicker materials
• High frequency TIG ignition
• Pulse frequency up from 0.2Hz to 500Hz
• Automatic adjustment of fan speed based on component temperature
• Upslope and downslope control
• IP21 class protection
• 2T/4T torch trigger control
• Capable of pulse DC TIG, Pulse MIG (with optional wire feeder) & Pulse MMA as standard

Technical specifications

• Input supply - 230V 32A
• Maximum output current - 250A
• MMA electrode capability - 1.6MM - 6MM
• Required generator KVA - 8KVA (w/ AVR)
• Build standards: EN60204 - 1:2006 / EN60974 - 1:2012 / EN60974 - 10:2014
• Dimensions - 315MM x 110MM x 255MM
• Weight - 6.5KG
• Protection class - IP21

The standardTIG 250 DC package includes a 4M Abicor Binzel WP26 TIG torch, gas regulator, 3M earth lead with clamp and gas hose with connections.
