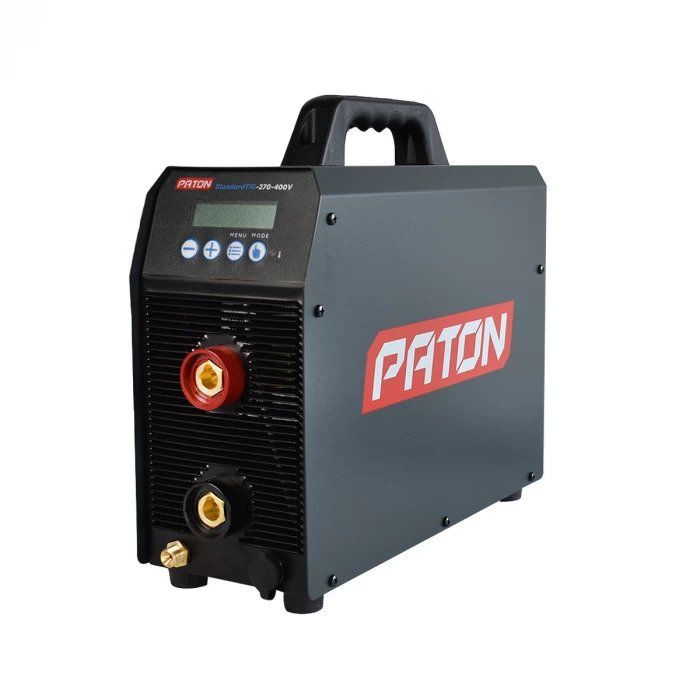

Paton StandardTIG 270 DC TIG Welder - 400V

Availability: In stock
SKU
0302-P1
£839.00 £699.17
Availability
7-10 Working Days
dividebuy-logoCheck your eligibility

Fast check - won't affect your credit rating.

Delivery & Return

Free Delivery

For orders over £75

Interest Free Finance

Up to 10 months

Payment Secured

Safe shopping with us

Key Features

  • 8MM maximum weld thickness on mild steel and stainless steel
  • Capable of pulse DC TIG and Pulse MMA
  • Pulse MIG capable (with optional wire feeder)
  • High duty cycle
  • Made in Europe
  • 5 year warranty

The Paton StandardTIG 270 DC TIG welder is a high quality, European made DC TIG welder. It runs on a 400V input supply and outputs 270 amps of DC welding current. The machine is capable of welding mild steel and stainless steel up to 8MM in thickness. The machine offers many things that are desireable when choosing which welder to purchase, such as:

  • Outstanding build quality
  • UK supported warranty (5 years)
  • Feature packed
  • High quality accessories from Abicor Binzel

A comprehensive list of key features can be found here:

  • MMA function with pulse for stick welding thicker materials
  • High frequency TIG ignition
  • Pulse frequency up from 0.2Hz to 500Hz
  • Automatic adjustment of fan speed based on component temperature
  • Upslope and downslope control
  • IP21 class protection
  • 2T/4T torch trigger control
  • Capable of pulse DC TIG, Pulse MIG (with optional wire feeder) & Pulse MMA as standard

Technical specifications

  • Input supply - 400V 16A
  • Maximum output current - 270A
  • MMA electrode capability - 1.6MM - 6MM
  • Required generator KVA - 8.6KVA (w/ AVR)
  • Build standards: EN60204 - 1:2006 / EN60974 - 1:2012 / EN60974 - 10:2014
  • Dimensions - 388MM x 332MM x 144MM
  • Weight - 9KG
  • Protection class - IP33

The standardTIG 270 DC package includes a 4M Abicor Binzel WP26 TIG torch, gas regulator, 3M earth lead with clamp and gas hose with connections.

More Information
Brand Paton
GYS Offer No
Lead Time 7-10 Working Days
Is Laser Product No
Max Weldable Thickness 2MM, 3MM, 4MM, 5MM, 6MM, 7MM, 8MM
Input Voltage 400V
Warranty Period 1 Year, 2 Year, 3 Year, 5 Year
Welding Output DC Only
Foot Pedal Compatible? Yes
Weldable Materials Mild Steel, Stainless Steel, Titanium
Short Description

Key Features

  • 8MM maximum weld thickness on mild steel and stainless steel
  • Capable of pulse DC TIG and Pulse MMA
  • Pulse MIG capable (with optional wire feeder)
  • High duty cycle
  • Made in Europe
  • 5 year warranty
POA No
